Automatic Packing Machine
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Description
★ High measurement accuracy, stable performance, LCD display screen, and extremely easy operation;
The double helix feeder is suitable for packaging various powders with different weights;
Equipped with a dust removal system greatly improves the working environment;
The control computer adopts Motorola technology, which has functions such as automatic correction of drop, over tolerance alarm, self diagnosis of faults, and storage of multiple production formulas;
★ It has the functions of automatic counting of packaging quantity, printing output, and data networking communication;
★ Equipped with a conveyor and sewing machine that can be lifted and lowered on the table, this machine is versatile and efficient;
★ Adopting imported pneumatic actuators, reliable operation, and simple maintenance.
Main structure

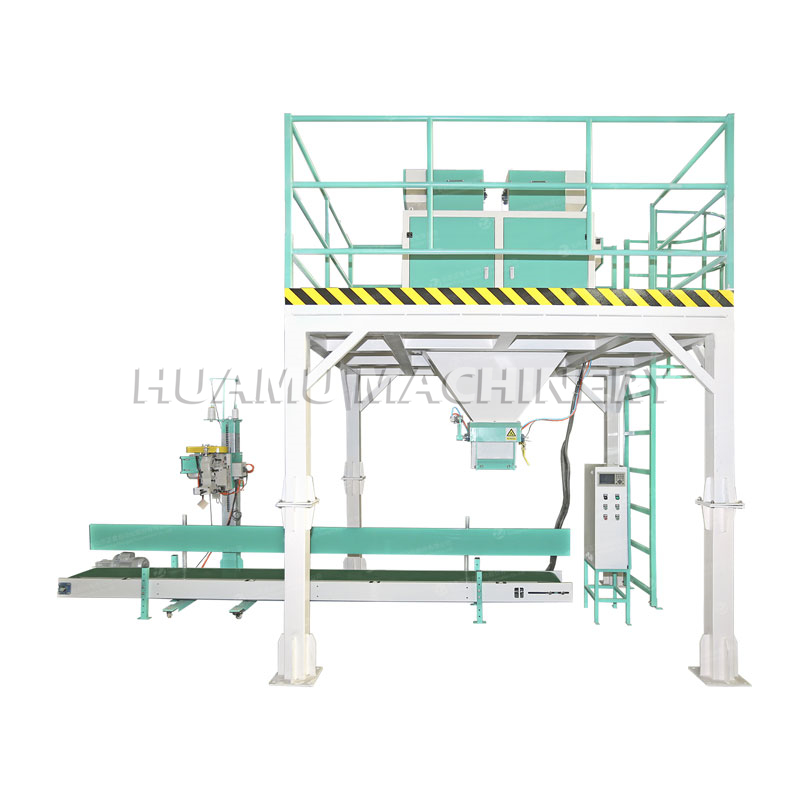

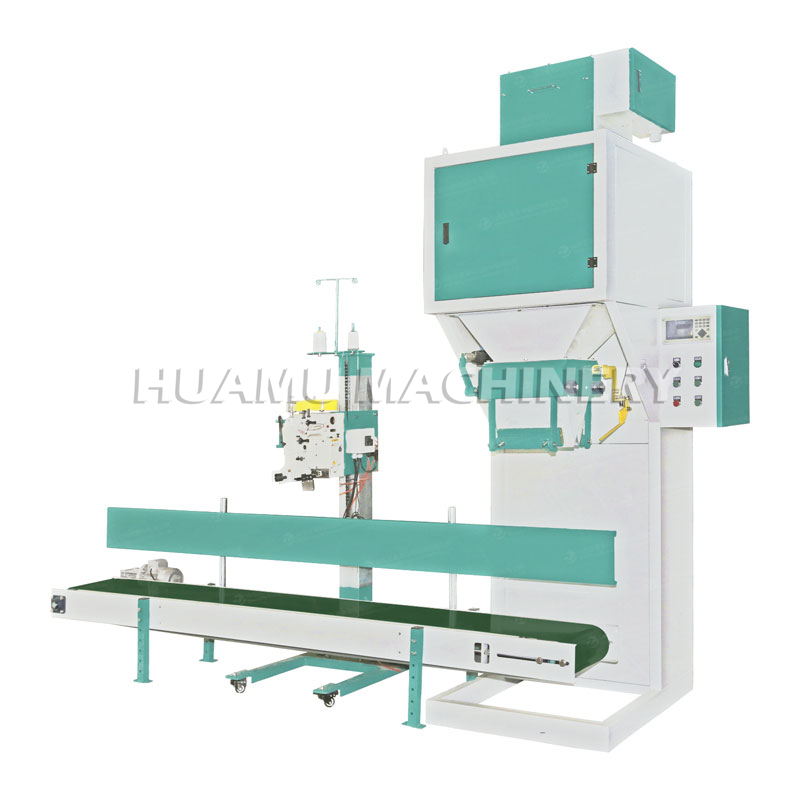

The machine is mainly composed of storage hopper, feeder, measuring device, discharge hopper, dust removal system, computer control, pneumatic control, conveyor, seam machine and other parts.
Application scope
★ Used for quantitative packaging of powdered materials in industries such as food, grain, feed, and chemical; Such as flour, starch, cement, etc. For better cooperation, please provide the following special materials:
★ Packaging bag material, shape, size (preferably provide actual samples);
★ Natural characteristics of materials (preferably provide physical samples); A name, B bulk density, C particle size, D moisture content, E flowability, F other characteristics (such as corrosion, etc.);
★ Filling material (kg/pack);
★ Required production capacity;
★ Packaging accuracy
The double helix feeder is suitable for packaging various powders with different weights;
Equipped with a dust removal system greatly improves the working environment;
The control computer adopts Motorola technology, which has functions such as automatic correction of drop, over tolerance alarm, self diagnosis of faults, and storage of multiple production formulas;
★ It has the functions of automatic counting of packaging quantity, printing output, and data networking communication;
★ Equipped with a conveyor and sewing machine that can be lifted and lowered on the table, this machine is versatile and efficient;
★ Adopting imported pneumatic actuators, reliable operation, and simple maintenance.
Main structure
The machine is mainly composed of storage hopper, feeder, measuring device, discharge hopper, dust removal system, computer control, pneumatic control, conveyor, seam machine and other parts.
Application scope
★ Used for quantitative packaging of powdered materials in industries such as food, grain, feed, and chemical; Such as flour, starch, cement, etc. For better cooperation, please provide the following special materials:
★ Packaging bag material, shape, size (preferably provide actual samples);
★ Natural characteristics of materials (preferably provide physical samples); A name, B bulk density, C particle size, D moisture content, E flowability, F other characteristics (such as corrosion, etc.);
★ Filling material (kg/pack);
★ Required production capacity;
★ Packaging accuracy
-
Belt type non bucket weighing series
-
Belt Double Bucket Scale Series
-

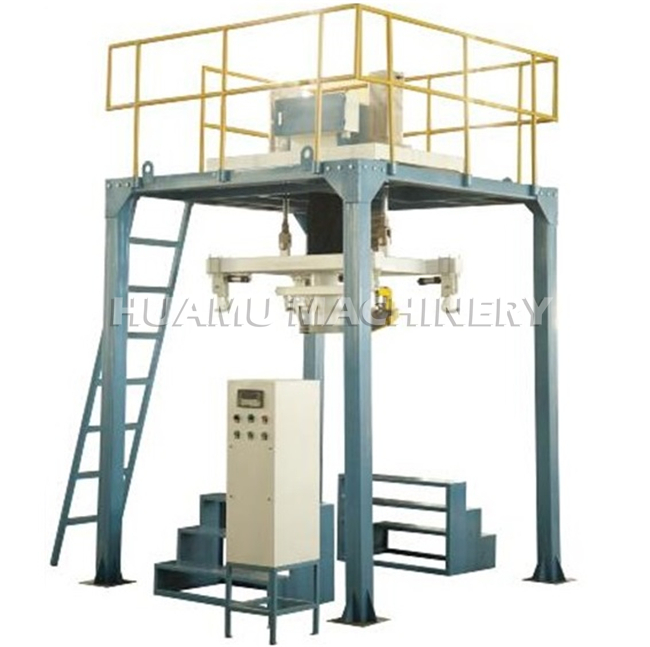

Ton bag machine series
|
Main Technical and Performance Index Parameter Table |
|||
|
Model |
LCS-10-DLZ |
LCS-25-DLZ |
LCS-50-DLZ |
|
Weighing range |
2-10kg |
10-25kg |
25-50kg |
|
Weighing accuracy |
0.2% |
0.2% |
0.2% |
|
Weighing speed |
280-320包/h |
260-300包/h |
240-280包/h |
|
Supporting power supply |
380/220v 50hz |
||
|
Supporting gas consumption |
0.4mpa-0.5mpa |
||
|
Motor Power |
1.1kw+0.75w×2+0.55kw |
||
