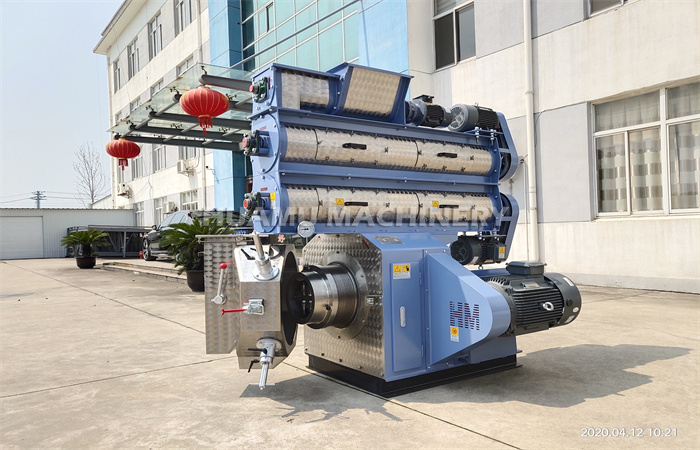

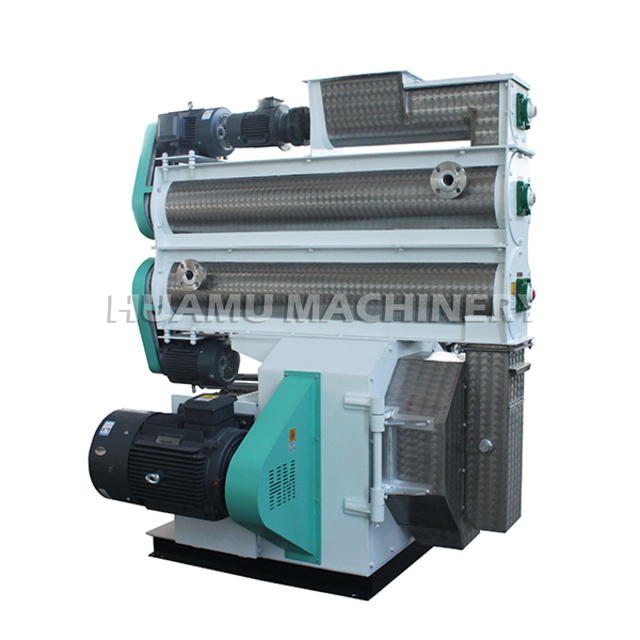

HMPM32 series pellet machine
.jpg)
.jpg?x-oss-process=image/resize,w_100/quality,q_100)
.jpg?x-oss-process=image/resize,w_100/quality,q_100)
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Description
★This model adopts a dual motor SPB strong narrow belt transmission system, which has ideal transmission efficiency, smooth rotation, high output, low noise, no oil leakage pollution, and lower component maintenance costs.
★This model is equipped with ring dies with various apertures and thicknesses ranging fromΦ1.5 to Φ12mm. Users can choose according to their different needs to achieve the best technical and economic benefits.
★Fixed stainless steel pellet cutter device, more intuitive adjustment, quick release clamp type ring die, can be equipped with linkage roller adjustment mechanism and ring die lifting device.
★This model adopts frequency converter control for feeding, equipped with overload protection device and external discharge mechanism.
★The pressure rod oil pump lubrication device is fast, labor-saving, safe and reliable, and can achieve non-stop refueling.
★Suitable for granulation of high-quality livestock, poultry, aquatic feed, and other materials.
★This model is equipped with ring dies with various apertures and thicknesses ranging fromΦ1.5 to Φ12mm. Users can choose according to their different needs to achieve the best technical and economic benefits.
★Fixed stainless steel pellet cutter device, more intuitive adjustment, quick release clamp type ring die, can be equipped with linkage roller adjustment mechanism and ring die lifting device.
★This model adopts frequency converter control for feeding, equipped with overload protection device and external discharge mechanism.
★The pressure rod oil pump lubrication device is fast, labor-saving, safe and reliable, and can achieve non-stop refueling.
★Suitable for granulation of high-quality livestock, poultry, aquatic feed, and other materials.
|
Main Technical and Performance Index Parameter Table |
|||||||
|
Model specifications |
HMPM-25 |
HMPM-32 |
HMPM-35 |
HMPM-40 |
HMPM-45 |
HMPM-508 |
HMPM-520 |
|
Main motor |
22 |
37 |
2×30 |
2×45 |
2×55 |
2×75 |
2×75 |
|
Conditioner motor |
1.5 |
2.2 |
3.0 |
4.0 |
5.5 |
7.5 |
7.5 |
|
Capacity(t/h) |
1-2 |
2-5 |
2-7 |
4-10 |
6-12 |
6-15 |
7-18 |
|
Ring die diameter(mm) |
Φ250 |
Φ320 |
Φ350 |
Φ400 |
Φ450 |
Φ508 |
Φ520 |
|
Feeder motor power(kw) |
0.75 |
0.75 |
0.75 |
1.5 |
1.5 |
1.5 |
2.2 |
|
Particle size (mm) |
Φ1.5-12 |
Φ1.5-12 |
Φ1.5-12 |
Φ1.5-18 |
Φ1.5-18 |
Φ2.0-18 |
Φ2.0-18 |
